Hexagon flange bolt

Material: Carbon Steel, SS304/316
Type: Hex Head, Full/HALF thread
Thread Size: M4-M36
Surface Finish: Plain, Black, Zinc Plated, Yellow Plated, H.D.G
Class: 4.8, 8.8, 10.9, 12.9, A2, A4

Email:

WhatsApp:

Still deciding? Get samples first, Contact US !

View similar products

Bolts

Tag list

Rongte Fastener

Description

Key Attributes

Material: Carbon Steel ，SS304/316

Type: Hex Head,Full/HALF thread

Thread Size: M4-M36

Surface Finish: Plain.Black,Zinc Plated.Yellow Plated.H.D.G

Class: 4.8.8.8.10.9.12.9,A2,A4

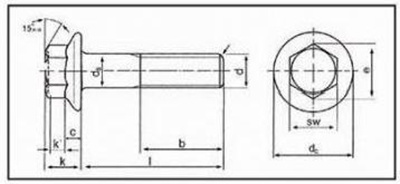

Tehcnical Informations

Thread size		M5	M6	M8	M10	M12	M14	M16
Pitch	P	0.80	1.00	1.25	1.50	1.75	2.00	2.00
Flange dia	de	11.80	14.20	18.00	22.30	26.60	30.50	35.00
Flange heigth	C	1.0	1.1	1.2	1.5	1.8	2.1	2.4
Wire dia	min	4.82	5.82	7.78	9.78	11.73	13.73	15.73
Head heigh	k	5.4	6.6	8.1	9.2	11.5	12.8	14.4
Head heigh	kl	2.0	2.5	3.2	3.6	4.6	5.1	5.8
Head with	SW	8	10	13	15	16	18	21
Diagonal	e	8.71	10.95	14.26	16.50	17.62	19.86	23.15
Thread lengt	b¹	16	18	22	36	30	34	38
Thread lengt	b²			28	32	36	40	44
b¹:Thread length for bolts up to 125mm
b²:Thread length for bolts between 125mm.&200mm.

Thread size			M5	M6	M8	M10	M12	M14	M16
Length			Mass for 1.000 unils in kg.
10	+/-	0.29	3.22
12	+/	0.35	3.46	6.94	13.76	24.04
16	+/	0.35	3.94	7.62	15.01	26.01
20	+/-	0.42	4.42	8.30	16.25	27.97	44.35
25	+/-	0.42	5.25	9.16	17.80	30.42	47.90	66.13	83.82
30	+/	0.42	6.00	10.50	19.36	32.88	51.46	7,101	90.37
35	+/	0.50	6.74	11.58	21.77	35.33	55.02	75.89	96.92
40	+/-	0.50	748	12.65	23.68	39.18	58.57	80.76	103.5
45	+/-	0.50	8.23	13.73	25.60	42.20	64.20	85.64	110.0
50	+/-	0.50	8.97	14.80	27.52	45.21	68.54	93.45	116.6
55	+/-	0.60	9.71	15.88	29.44	48.23	72.87	99.37	126.7
60	+/-	0.60	10.46	16.96	31.36	51.24	77.21	105.3	134.5
65	+/-	0.60	11.20	18.03	33.27	54.25	81.55	111.2	142.3
70	+/	0.60	11.94	19.11	35.19	57.27	85.89	117.1	150.0
80	+/-	0.60	13.43	21.26	39.03	63.29	94.56	129.0	166.0
90	+	0.70		23.41	42.87	69.32	103.2	140.8	181.1
100	+-	0.70		25.57	46.70	75.35	111.9	152.7	197.0
110	+/-	0.70				81.38	120.6	164.5	212.0
120	+/-	0.70				87.40	129.3	176.4	228.0
130	+/	0.80				92.76	137.0	187.0	242.0
140	+/-	0.80					145.7	198.8	257.0
150	+/	0.80						210.7	273.0
160	+/-	2.00
180	+/	2.00
200	+/	2.00

Main products

Main products: rivet nuts/columns (through hole, blind hole), over 800 varieties and specifications, including standard and non-standard parts; The production materials include high-quality carbon steel, stainless steel, aluminum, copper, etc. The products are used in aviation, automobiles, railways, household appliances, furniture, etc; Comprehensive coverage of technology and product requirements;

Company Video

Certificate

Factory photo

Exhibition Collection

Package

FAQ

1.Are you trading company or manufacturer?
We are factory.https://hbrongte.en.alibaba.com/contactinfo.html

2.What can you buy from us?
Fasteners, Metal Stamping Parts, CNC Machining Part, CNC Turning Parts, Springs.

3. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.

4. Can I place a small quantity as trial orders?
Definitely yes,small quantity can be acceptable for the first order.

5.Do you provide samples?is it free or extra?
Yes,we could offer the sample for free charge but do not pay the cost of freight.

6.How long is your delivery time?
Generally it is 5-10 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.

7. Why should you buy from us not from other suppliers?
The main feature of our company is the ability to optimize the product design with our strong engineering team, so as to help customers save costs in material selection and structure function and safety.

8. How does your company handle with customer's complaints?
A: The policy for us to handle with customer's complaint is CUSTOMER FIRST.
1) After get customer's complaints, we will inform all our related people, such as production manager, engineer, quality people
and understand the whole condition and find out the reasons.
2) We will report to customer the reasons and solutions.
3) Then to negotiate with customer and find the acceptable solution which both agreed.
